1.服务端一键安装脚本
wget https://nos-public.nos-eastchina1.126.net/vpn -O openvpn-install.sh && bash openvpn-install.sh安装完毕后将 /root/ 下的 client.ovpn 文件，下载到本地导入 OpenVPN 客户端连接软件进行连接。
注意:
强烈建议不要使用默认的 VPN 端口 1194，建议修改为其他端口并防火墙开放该端口，使用云服务器的话还需要在安全组放行。
还需要继续创建其他的client.ovpn文件继续执行该脚本即可。
bash openvpn-install.sh2.客户端连接
2.1 Linux
sudo apt-get install openvpn
openvpn client.ovpn- 开机自启动服务
sudo vim /etc/rc.local# exit 0 前面加入如下内容
/usr/sbin/openvpn --config /root/client.ovpn &2.2 windows使用

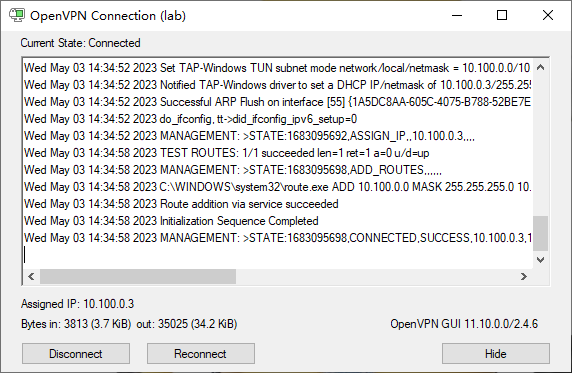

客户端下载地址:https://nos-public.nos-eastchina1.126.net/openvpn-install-2.4.6-I602.exe
参考资料
脚本内容备份openvpn-install.sh
#!/bin/bash
# OpenVPN road warrior installer for Debian, Ubuntu and CentOS
# This script will work on Debian, Ubuntu, CentOS and probably other distros
# of the same families, although no support is offered for them. It isn't
# bulletproof but it will probably work if you simply want to setup a VPN on
# your Debian/Ubuntu/CentOS box. It has been designed to be as unobtrusive and
# universal as possible.
# Detect Debian users running the script with "sh" instead of bash
if readlink /proc/$$/exe | grep -qs "dash"; then
echo "This script needs to be run with bash, not sh"
exit 1
fi
if [[ "$EUID" -ne 0 ]]; then
echo "Sorry, you need to run this as root"
exit 2
fi
if [[ ! -e /dev/net/tun ]]; then
echo "The TUN device is not available
You need to enable TUN before running this script"
exit 3
fi
if grep -qs "CentOS release 5" "/etc/redhat-release"; then
echo "CentOS 5 is too old and not supported"
exit 4
fi
if [[ -e /etc/debian_version ]]; then
OS=debian
GROUPNAME=nogroup
RCLOCAL='/etc/rc.local'
elif [[ -e /etc/centos-release || -e /etc/redhat-release ]]; then
OS=centos
GROUPNAME=nobody
RCLOCAL='/etc/rc.d/rc.local'
else
echo "Looks like you aren't running this installer on Debian, Ubuntu or CentOS"
exit 5
fi
newclient () {
# Generates the custom client.ovpn
cp /etc/openvpn/client-common.txt ~/$1.ovpn
echo "<ca>" >> ~/$1.ovpn
cat /etc/openvpn/easy-rsa/pki/ca.crt >> ~/$1.ovpn
echo "</ca>" >> ~/$1.ovpn
echo "<cert>" >> ~/$1.ovpn
cat /etc/openvpn/easy-rsa/pki/issued/$1.crt >> ~/$1.ovpn
echo "</cert>" >> ~/$1.ovpn
echo "<key>" >> ~/$1.ovpn
cat /etc/openvpn/easy-rsa/pki/private/$1.key >> ~/$1.ovpn
echo "</key>" >> ~/$1.ovpn
echo "<tls-auth>" >> ~/$1.ovpn
cat /etc/openvpn/ta.key >> ~/$1.ovpn
echo "</tls-auth>" >> ~/$1.ovpn
}
# Try to get our IP from the system and fallback to the Internet.
# I do this to make the script compatible with NATed servers (lowendspirit.com)
# and to avoid getting an IPv6.
IP=$(ip addr | grep 'inet' | grep -v inet6 | grep -vE '127\.[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}' | grep -o -E '[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}' | head -1)
VPCSUBNETDEFAULT=$(route -n | grep eth0 | grep 255.255| awk '{print $1,$3}' | tail -n 1| awk '{print $1}')
VPCMASKDEFAULT=$(route -n | grep eth0 | grep 255.255| awk '{print $1,$3}' | tail -n 1| awk '{print $2}')
if [[ "$IP" = "" ]]; then
IP=$(wget -4qO- "http://whatismyip.akamai.com/")
fi
if [[ -e /etc/openvpn/server.conf ]]; then
while :
do
clear
echo "Looks like OpenVPN is already installed"
echo ""
echo "What do you want to do?"
echo " 1) Add a new user"
echo " 2) Revoke an existing user"
echo " 3) Remove OpenVPN"
echo " 4) Exit"
read -p "Select an option [1-4]: " option
case $option in
1)
echo ""
echo "Tell me a name for the client certificate"
echo "Please, use one word only, no special characters"
read -p "Client name: " -e -i netease-b CLIENT
cd /etc/openvpn/easy-rsa/
./easyrsa build-client-full $CLIENT nopass
# Generates the custom client.ovpn
newclient "$CLIENT"
echo ""
echo "Client $CLIENT added, configuration is available at" ~/"$CLIENT.ovpn"
exit
;;
2)
# This option could be documented a bit better and maybe even be simplimplified
# ...but what can I say, I want some sleep too
NUMBEROFCLIENTS=$(tail -n +2 /etc/openvpn/easy-rsa/pki/index.txt | grep -c "^V")
if [[ "$NUMBEROFCLIENTS" = '0' ]]; then
echo ""
echo "You have no existing clients!"
exit 6
fi
echo ""
echo "Select the existing client certificate you want to revoke"
tail -n +2 /etc/openvpn/easy-rsa/pki/index.txt | grep "^V" | cut -d '=' -f 2 | nl -s ') '
if [[ "$NUMBEROFCLIENTS" = '1' ]]; then
read -p "Select one client [1]: " CLIENTNUMBER
else
read -p "Select one client [1-$NUMBEROFCLIENTS]: " CLIENTNUMBER
fi
CLIENT=$(tail -n +2 /etc/openvpn/easy-rsa/pki/index.txt | grep "^V" | cut -d '=' -f 2 | sed -n "$CLIENTNUMBER"p)
cd /etc/openvpn/easy-rsa/
./easyrsa --batch revoke $CLIENT
EASYRSA_CRL_DAYS=3650 ./easyrsa gen-crl
rm -rf pki/reqs/$CLIENT.req
rm -rf pki/private/$CLIENT.key
rm -rf pki/issued/$CLIENT.crt
rm -rf /etc/openvpn/crl.pem
cp /etc/openvpn/easy-rsa/pki/crl.pem /etc/openvpn/crl.pem
# CRL is read with each client connection, when OpenVPN is dropped to nobody
chown nobody:$GROUPNAME /etc/openvpn/crl.pem
echo ""
echo "Certificate for client $CLIENT revoked"
exit
;;
3)
echo ""
read -p "Do you really want to remove OpenVPN? [y/n]: " -e -i n REMOVE
if [[ "$REMOVE" = 'y' ]]; then
PORT=$(grep '^port ' /etc/openvpn/server.conf | cut -d " " -f 2)
PROTOCOL=$(grep '^proto ' /etc/openvpn/server.conf | cut -d " " -f 2)
if pgrep firewalld; then
IP=$(firewall-cmd --direct --get-rules ipv4 nat POSTROUTING | grep '\-s 10.8.0.0/24 '"'"'!'"'"' -d 10.8.0.0/24 -j SNAT --to ' | cut -d " " -f 10)
# Using both permanent and not permanent rules to avoid a firewalld reload.
firewall-cmd --zone=public --remove-port=$PORT/$PROTOCOL
firewall-cmd --zone=trusted --remove-source=10.8.0.0/24
firewall-cmd --permanent --zone=public --remove-port=$PORT/$PROTOCOL
firewall-cmd --permanent --zone=trusted --remove-source=10.8.0.0/24
firewall-cmd --direct --remove-rule ipv4 nat POSTROUTING 0 -s 10.8.0.0/24 ! -d 10.8.0.0/24 -j SNAT --to $IP
firewall-cmd --permanent --direct --remove-rule ipv4 nat POSTROUTING 0 -s 10.8.0.0/24 ! -d 10.8.0.0/24 -j SNAT --to $IP
else
IP=$(grep 'iptables -t nat -A POSTROUTING -s 10.8.0.0/24 ! -d 10.8.0.0/24 -j SNAT --to ' $RCLOCAL | cut -d " " -f 14)
iptables -t nat -D POSTROUTING -s 10.8.0.0/24 ! -d 10.8.0.0/24 -j SNAT --to $IP
sed -i '/iptables -t nat -A POSTROUTING -s 10.8.0.0\/24 ! -d 10.8.0.0\/24 -j SNAT --to /d' $RCLOCAL
if iptables -L -n | grep -qE '^ACCEPT'; then
iptables -D INPUT -p $PROTOCOL --dport $PORT -j ACCEPT
iptables -D FORWARD -s 10.8.0.0/24 -j ACCEPT
iptables -D FORWARD -m state --state RELATED,ESTABLISHED -j ACCEPT
sed -i "/iptables -I INPUT -p $PROTOCOL --dport $PORT -j ACCEPT/d" $RCLOCAL
sed -i "/iptables -I FORWARD -s 10.8.0.0\/24 -j ACCEPT/d" $RCLOCAL
sed -i "/iptables -I FORWARD -m state --state RELATED,ESTABLISHED -j ACCEPT/d" $RCLOCAL
fi
fi
if hash sestatus 2>/dev/null; then
if sestatus | grep "Current mode" | grep -qs "enforcing"; then
if [[ "$PORT" != '1194' || "$PROTOCOL" = 'tcp' ]]; then
semanage port -d -t openvpn_port_t -p $PROTOCOL $PORT
fi
fi
fi
if [[ "$OS" = 'debian' ]]; then
apt-get remove --purge -y openvpn
else
yum remove openvpn -y
fi
rm -rf /etc/openvpn
echo ""
echo "OpenVPN removed!"
else
echo ""
echo "Removal aborted!"
fi
exit
;;
4) exit;;
esac
done
else
clear
echo 'Welcome to this quick OpenVPN "road warrior" installer'
echo ""
# OpenVPN setup and first user creation
echo "I need to ask you a few questions before starting the setup"
echo "You can leave the default options and just press enter if you are ok with them"
echo ""
echo "First I need to know the IPv4 address of the network interface you want OpenVPN"
echo "listening to."
read -p "IP address: " -e -i $IP IP
echo "" echo "Which protocol do you want for OpenVPN connections?"
echo " 1) UDP (recommended)"
echo " 2) TCP"
read -p "Protocol [1-2]: " -e -i 1 PROTOCOL
case $PROTOCOL in
1)
PROTOCOL=udp
;;
2)
PROTOCOL=tcp
;;
esac
echo ""
echo "What port do you want OpenVPN listening to?"
read -p "Port: " -e -i 1194 PORT
echo ""
echo "what VPC subnet?"
read -p "VPC subnet(E.g 172.16.0.0): " -e -i $VPCSUBNETDEFAULT VPCSUBNET
echo ""
echo "what VPC mask?"
read -p "VPC mask(E.g 255.255.0.0): " -e -i $VPCMASKDEFAULT VPCMASK
echo ""
# echo "Which DNS do you want to use with the VPN?"
# echo " 1) Current system resolvers"
# echo " 2) Google"
# echo " 3) OpenDNS"
# echo " 4) NTT"
# echo " 5) Hurricane Electric"
# echo " 6) Verisign"
# read -p "DNS [1-6]: " -e -i 1 DNS
# echo ""
echo "Finally, tell me your name for the client certificate"
echo "Please, use one word only, no special characters"
read -p "Client name: " -e -i netease-b CLIENT
echo ""
echo "Okay, that was all I needed. We are ready to setup your OpenVPN server now"
read -n1 -r -p "Press any key to continue..."
if [[ "$OS" = 'debian' ]]; then
apt-get update
apt-get install openvpn iptables openssl ca-certificates -y
else
# Else, the distro is CentOS
yum install epel-release -y
yum install openvpn iptables openssl wget ca-certificates -y
fi
# An old version of easy-rsa was available by default in some openvpn packages
if [[ -d /etc/openvpn/easy-rsa/ ]]; then
rm -rf /etc/openvpn/easy-rsa/
fi
# Get easy-rsa
wget -O ~/EasyRSA-3.0.4.tgz "https://nos-public.nos-eastchina1.126.net/EasyRSA-3.0.4.tgz"
tar xzf ~/EasyRSA-3.0.4.tgz -C ~/
mv ~/EasyRSA-3.0.4/ /etc/openvpn/
mv /etc/openvpn/EasyRSA-3.0.4/ /etc/openvpn/easy-rsa/
chown -R root:root /etc/openvpn/easy-rsa/
rm -rf ~/EasyRSA-3.0.4.tgz
cd /etc/openvpn/easy-rsa/
# Create the PKI, set up the CA, the DH params and the server + client certificates
./easyrsa init-pki
./easyrsa --batch build-ca nopass
./easyrsa gen-dh
./easyrsa build-server-full server nopass
./easyrsa build-client-full $CLIENT nopass
EASYRSA_CRL_DAYS=3650 ./easyrsa gen-crl
# Move the stuff we need
cp pki/ca.crt pki/private/ca.key pki/dh.pem pki/issued/server.crt pki/private/server.key pki/crl.pem /etc/openvpn
# CRL is read with each client connection, when OpenVPN is dropped to nobody
chown nobody:$GROUPNAME /etc/openvpn/crl.pem
# Generate key for tls-auth
openvpn --genkey --secret /etc/openvpn/ta.key
# Generate server.conf
echo "port $PORT
proto $PROTOCOL
dev tun
sndbuf 0
rcvbuf 0
ca ca.crt
cert server.crt
key server.key
dh dh.pem
auth SHA512
tls-auth ta.key 0
topology subnet
server 10.8.0.0 255.255.255.0
ifconfig-pool-persist ipp.txt" > /etc/openvpn/server.conf
echo "push \"route $VPCSUBNET $VPCMASK vpn_gateway\"" >> /etc/openvpn/server.conf
echo "keepalive 10 120
cipher AES-256-CBC
comp-lzo
user nobody
group $GROUPNAME
persist-key
duplicate-cn
max-clients 10
persist-tun
status openvpn-status.log
verb 3
crl-verify crl.pem" >> /etc/openvpn/server.conf
# Enable net.ipv4.ip_forward for the system
sed -i '/\<net.ipv4.ip_forward\>/c\net.ipv4.ip_forward=1' /etc/sysctl.conf
if ! grep -q "\<net.ipv4.ip_forward\>" /etc/sysctl.conf; then
echo 'net.ipv4.ip_forward=1' >> /etc/sysctl.conf
fi
# Avoid an unneeded reboot
echo 1 > /proc/sys/net/ipv4/ip_forward
if pgrep firewalld; then
# Using both permanent and not permanent rules to avoid a firewalld
# reload.
# We don't use --add-service=openvpn because that would only work with
# the default port and protocol.
firewall-cmd --zone=public --add-port=$PORT/$PROTOCOL
firewall-cmd --zone=trusted --add-source=10.8.0.0/24
firewall-cmd --permanent --zone=public --add-port=$PORT/$PROTOCOL
firewall-cmd --permanent --zone=trusted --add-source=10.8.0.0/24
# Set NAT for the VPN subnet
firewall-cmd --direct --add-rule ipv4 nat POSTROUTING 0 -s 10.8.0.0/24 ! -d 10.8.0.0/24 -j SNAT --to $IP
firewall-cmd --permanent --direct --add-rule ipv4 nat POSTROUTING 0 -s 10.8.0.0/24 ! -d 10.8.0.0/24 -j SNAT --to $IP
else
# Needed to use rc.local with some systemd distros
if [[ "$OS" = 'debian' && ! -e $RCLOCAL ]]; then
echo '#!/bin/sh -e
exit 0' > $RCLOCAL
fi
chmod +x $RCLOCAL
# Set NAT for the VPN subnet
iptables -t nat -A POSTROUTING -s 10.8.0.0/24 ! -d 10.8.0.0/24 -j SNAT --to $IP
sed -i "1 a\iptables -t nat -A POSTROUTING -s 10.8.0.0/24 ! -d 10.8.0.0/24 -j SNAT --to $IP" $RCLOCAL
if iptables -L -n | grep -qE '^(REJECT|DROP)'; then
# If iptables has at least one REJECT rule, we asume this is needed.
# Not the best approach but I can't think of other and this shouldn't
# cause problems.
iptables -I INPUT -p $PROTOCOL --dport $PORT -j ACCEPT
iptables -I FORWARD -s 10.8.0.0/24 -j ACCEPT
iptables -I FORWARD -m state --state RELATED,ESTABLISHED -j ACCEPT
sed -i "1 a\iptables -I INPUT -p $PROTOCOL --dport $PORT -j ACCEPT" $RCLOCAL
sed -i "1 a\iptables -I FORWARD -s 10.8.0.0/24 -j ACCEPT" $RCLOCAL
sed -i "1 a\iptables -I FORWARD -m state --state RELATED,ESTABLISHED -j ACCEPT" $RCLOCAL
fi
fi
# If SELinux is enabled and a custom port or TCP was selected, we need this
if hash sestatus 2>/dev/null; then
if sestatus | grep "Current mode" | grep -qs "enforcing"; then
if [[ "$PORT" != '1194' || "$PROTOCOL" = 'tcp' ]]; then
# semanage isn't available in CentOS 6 by default
if ! hash semanage 2>/dev/null; then
yum install policycoreutils-python -y
fi
semanage port -a -t openvpn_port_t -p $PROTOCOL $PORT
fi
fi
fi
# And finally, restart OpenVPN
if [[ "$OS" = 'debian' ]]; then
# Little hack to check for systemd
if pgrep systemd-journal; then
systemctl restart openvpn@server.service
else
/etc/init.d/openvpn restart
fi
else
if pgrep systemd-journal; then
systemctl restart openvpn@server.service
systemctl enable openvpn@server.service
else
service openvpn restart
chkconfig openvpn on
fi
fi
# Try to detect a NATed connection and ask about it to potential LowEndSpirit users
EXTERNALIP=$(wget -4qO- "http://whatismyip.akamai.com/")
if [[ "$IP" != "$EXTERNALIP" ]]; then
echo ""
echo "Looks like your server is behind a NAT!"
echo ""
echo "If your server is NATed (e.g. LowEndSpirit), I need to know the external IP"
echo "If that's not the case, just ignore this and leave the next field blank"
read -p "External IP: " -e -i $EXTERNALIP USEREXTERNALIP
if [[ "$USEREXTERNALIP" != "" ]]; then
IP=$USEREXTERNALIP
fi
fi
# client-common.txt is created so we have a template to add further users later
echo "client
dev tun
proto $PROTOCOL
sndbuf 0
rcvbuf 0
remote $IP $PORT
resolv-retry infinite
nobind
max-clients 10
persist-key
persist-tun
remote-cert-tls server
auth SHA512
cipher AES-256-CBC
comp-lzo
#setenv opt block-outside-dns
key-direction 1
auth-nocache
verb 3" > /etc/openvpn/client-common.txt
# Generates the custom client.ovpn
newclient "$CLIENT"
echo ""
echo "Finished!"
echo ""
echo "Your client configuration is available at" ~/"$CLIENT.ovpn"
echo "If you want to add more clients, you simply need to run this script again!"
fi
评论 (0)
